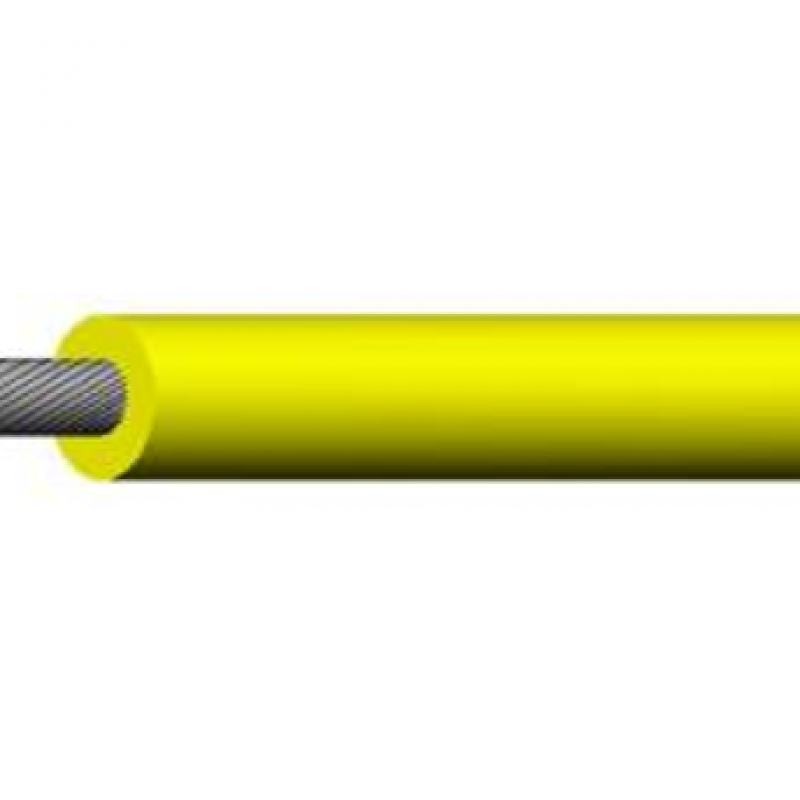

日标汽车电线 (低压薄壁) Japanese standard car electric wire (low voltage Thin-wall)
  • 日标汽车电线 (低压薄壁) Japanese standard car electric wire (low voltage Thin-wall)

产品特性Product features

产品型号Product modelAVS、AVXS
规格范围Specification Range0.3~5
额定温度Rated temperature-40℃~100℃ (Optional)
额定电压Rated VoltageAC 60V
绝缘体积电阻率Insulation volume resistivity≥10^9
耐压Dielectric Voltage1kVac/30minContinue to rise to the 5KVac No Breakdown
耐油Oil ResistanceIRM902,IRM903,Gasoline  20h OD Variation≤15% No Cracks
环保要求Environmental RequirementsCompliant with RoHS and REACH
参考标准reference standardJASO D611

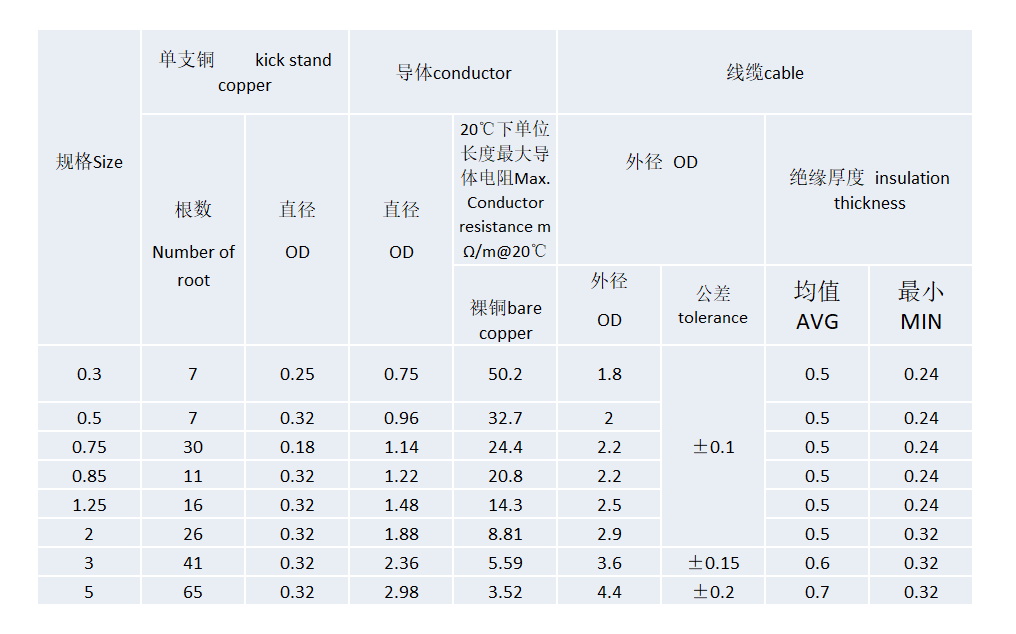

产品规格Product specification

日标汽车电线 (低压薄壁) Japanese standard car electric wire (low voltage Thin-wall)

以上产品规格、尺寸、结构可能因为技术进步而有所改变,同类规格可根据客户使用需求进行设计制造,以上不为该产 品的全部规格

The above product specification, size, structure may be changed because of technology progress, similar specification can be used according to customer demand for design and manufacture, The above is not for the full specifications of the product
