产品特性Product features
| 产品型号Product model | GPT、GTE、GXL |
| 规格范围Specification Range | 20~8AWG |
| 额定温度Rated temperature | -40℃~125℃ (Optional) |
| 额定电压Rated Voltage | AC 60V |
| 绝缘体积电阻率Insulation volume resistivity | ≥10^9 |
| 耐压Dielectric Voltage | 1kVac/1min No Breakdown |
| 耐油Oil Resistance | IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks |
| 环保要求Environmental Requirements | Compliant with RoHS and REACH |
| 参考标准reference standard | SAE J1128 |

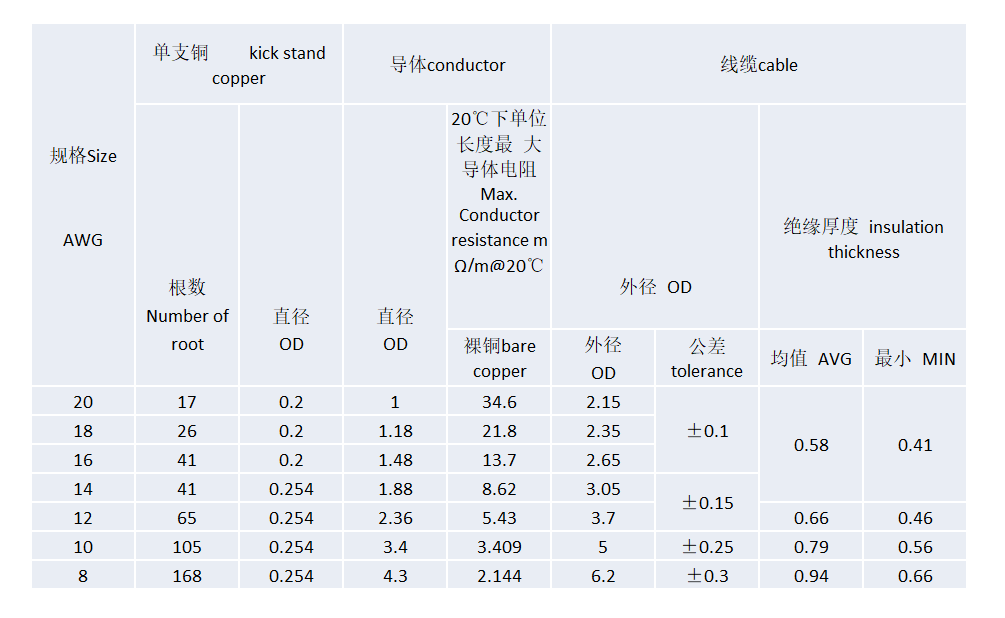

产品规格Product specification
以上产品规格、尺寸、结构可能因为技术进步而有所改变，同类规格可根据客户使用需求进行设计制造
The above product specification, size, structure may be changed because of technology progress, similar specification can be used according to customer demand for design and manufacture
