美标汽车电线 (低压薄壁) American standard automotive wires (low voltage Thin-wall)
  • 美标汽车电线 (低压薄壁) American standard automotive wires (low voltage Thin-wall)

产品特性Product features

产品型号Product modelTWP、TWE、TXL
规格范围Specification Range24~8AWG
额定温度Rated temperature-40℃~125℃ (Optional)
额定电压Rated VoltageAC 60V
绝缘体积电阻率Insulation volume resistivity≥10^9
耐压Dielectric Voltage1kVac/1min No Breakdown
耐油Oil ResistanceIRM902,IRM903,Gasoline  20h OD Variation≤15% No Cracks
环保要求Environmental RequirementsCompliant with RoHS and REACH
参考标准reference standardSAE J1128

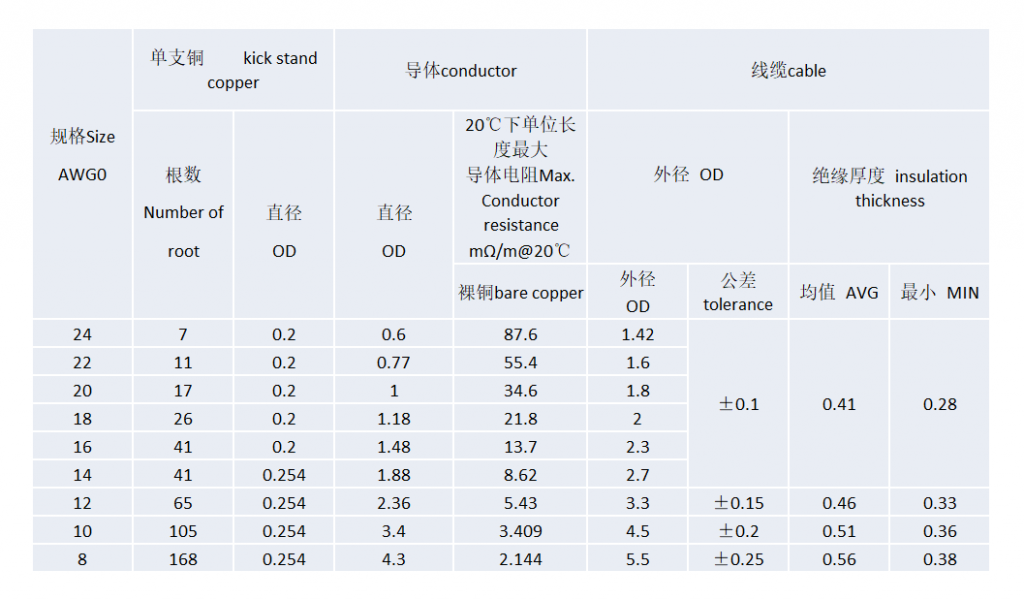

产品规格Product specification

美标汽车电线 (低压薄壁) American standard automotive wires (low voltage Thin-wall)

以上产品规格、尺寸、结构可能因为技术进步而有所改变,同类规格可根据客户使用需求进行设计制造

The above product specification, size, structure may be changed because of technology progress, similar specification can be used according to customer demand for design and manufacture
