产品特性Product features
| 产品型号Product model | FLRY、FLRYW、FLR4Y、 FLR6Y、FLR7Y、FLR9Y、FLR13Y、 FLR51Y、 FLR2X、FLR2G |
| 规格范围Specification Range | 0.13~95mm² |
| 额定温度Rated temperature | -40℃~200℃ (Optional) |
| 额定电压Rated Voltage | AC 60V |
| 绝缘体积电阻率Insulation volume resistivity | ≥10^9 |
| 耐压Dielectric Voltage | 1kVac/30minContinue to rise to the 5KVac No Breakdown |
| 耐油Oil Resistance | IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks |
| 环保要求Environmental Requirements | Compliant with RoHS and REACH |
| 参考标准reference standard | ISO 6722 DIN 72551 |

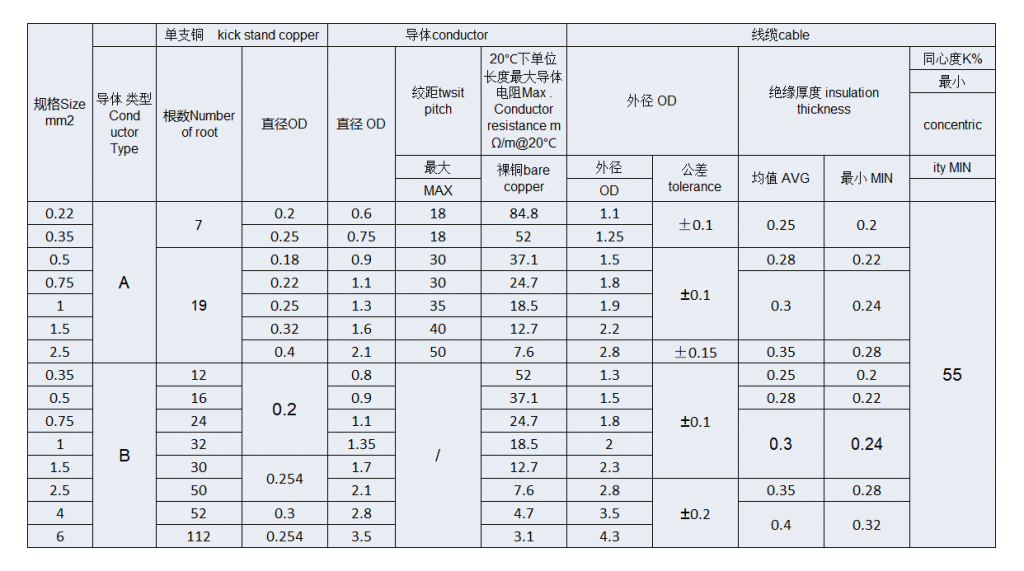

产品规格Product specification
以上产品规格、尺寸、结构可能因为技术进步而有所改变，同类规格可根据客户使用需求进行设计制造,以上不为该产 品的全部规格
The above product specification, size, structure may be changed because of technology progress, similar specification can be used according to customer demand for design and manufacture, The above is not for the full specifications of the product
