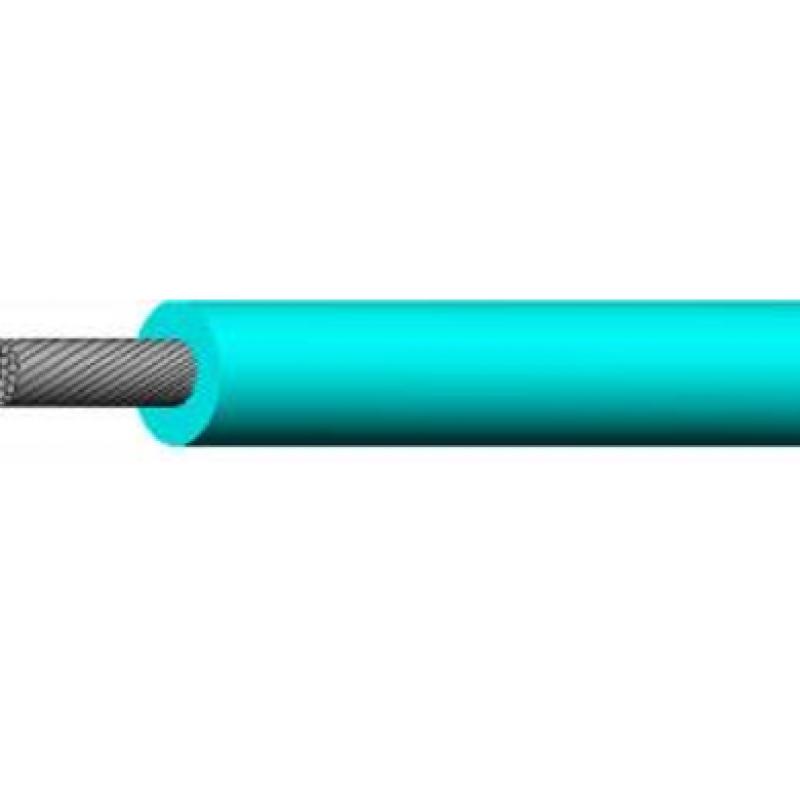

德标汽车电线 (低压超薄) Germany standard automobile wires (low voltage Ultra-thin wall)
  • 德标汽车电线 (低压超薄) Germany standard automobile wires (low voltage Ultra-thin wall)

产品特性Product features

产品型号Product modelFLUY、FLUYW、FLU4Y、  FLU6Y、FLU7Y、FLU9Y、FLU13Y、  FLU51Y、  FLU2X
规格范围Specification Range0.13~2.5mm²
额定温度Rated temperature-40℃~200℃ (Optional)
额定电压Rated Voltage AC 60V
绝缘体积电阻率Insulation volume resistivity≥10^9
耐压Dielectric Voltage1kVac/30minContinue to rise to the 5KVac No Breakdown
耐油Oil ResistanceIRM902,IRM903,Gasoline  20h OD Variation≤15% No Cracks
环保要求Environmental RequirementsCompliant with RoHS and REACH
参考标准reference standardISO 6722  DIN 72551

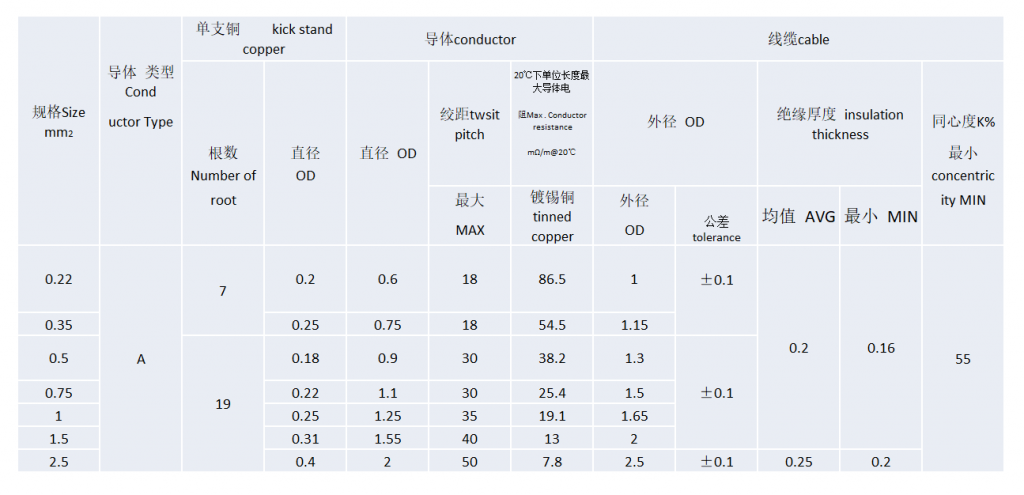

产品规格Product specification

德标汽车电线 (低压超薄) Germany standard automobile wires (low voltage Ultra-thin wall)

以上产品规格、尺寸、结构可能因为技术进步而有所改变,同类规格可根据客户使用需求进行设计制造,以上不为该产 品的全部规格

The above product specification, size, structure may be changed because of technology progress, similar specification can be used according to customer demand for design and manufacture, The above is not for the full specifications of the product
